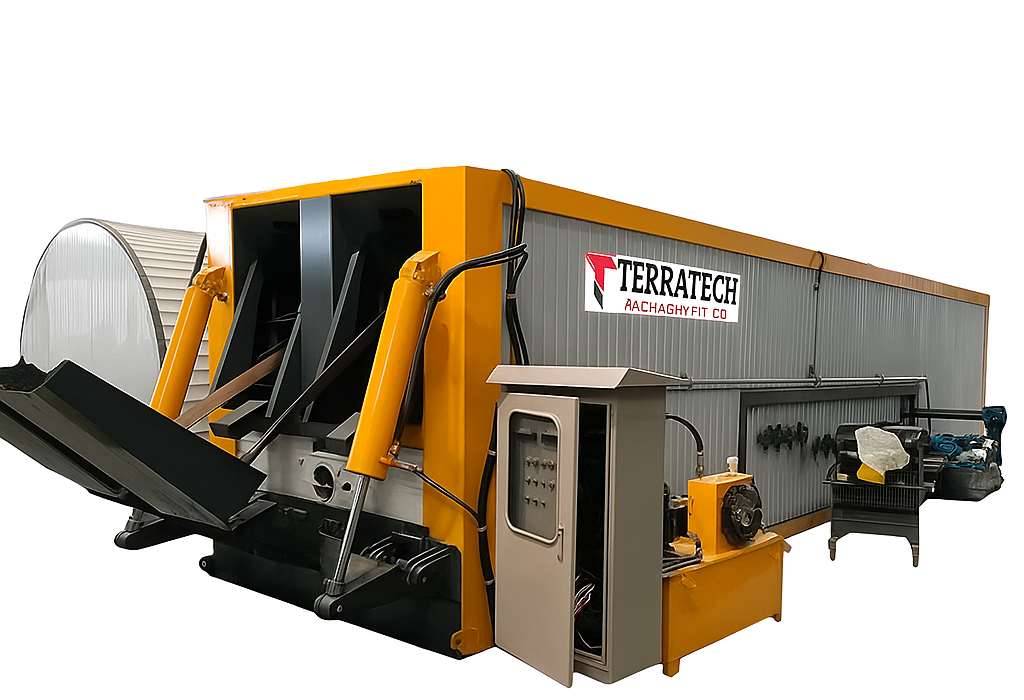

Our Bitumen Drum Decanter Melters are engineered for efficient, continuous melting of bitumen stored in standard drums. Designed to optimize workflow and reduce downtime, these units are ideal for road construction, asphalt batching plants, and infrastructure projects requiring uninterrupted hot bitumen supply.
The system employs indirect heating through a high-efficiency thermal oil system, ensuring uniform heat distribution without degrading the bitumen quality. It comes with an integrated hydraulic drum lifter, drum inversion mechanism, and automatic bitumen flow-out system to streamline operations and reduce manual handling.
| Model No | BDDM 6000 (Bitumen Drum Decanter Melter – 6 Ton Capacity) |
|---|---|
| Heating System | Indirect Thermal Oil Heating System |
| Heating Capacity | 6 Tons of Bitumen per Batch |
| Drum Loading Capacity | 16–20 Drums per Batch |
| Bitumen Output Temp | Up to 160–180°C |
| Heating Fuel | Diesel / Furnace Oil / LDO |
| Bitumen Transfer Pump | High-Temperature Gear Pump with Motor |
| Drum Lifting Mechanism | Hydraulic Drum Lifter with Tilting Frame |
| Insulation | Rock Wool / Ceramic Blanket with Aluminum Sheet Cladding |
| Melting Time | 60 to 90 Minutes (Depending on Ambient and Drum Bitumen Quality) |
| Power Supply | 3 Phase, 50 Hz, 440V |
From drum to tank, every Terratech Bitumen Drum Decanter Melter is engineered to ensure safe, efficient, and continuous melting of bitumen. Whether you’re working on road surfacing, waterproofing, or industrial applications, our melters are built to adapt to your site requirements with ease.
Using indirect thermal oil heating, our systems extract bitumen from standard drums without open flames, reducing risks and energy waste. The automated lifting mechanism loads drums, heats them uniformly, and drains the melted bitumen directly into storage or application tanks—minimizing manual effort and maximizing safety.
