Concrete Groove Cutter Machine
Terratech Machinery Pvt. Ltd. is equipped with up-to-date technology and uses top-of-the-line materials to manufacture construction machinery like a concrete groove cutter machine. A groove cutting machine is used to cut grooves in the concrete to prevent them from cracking later. We offer four types of Concrete Cutter machine for sale.
1. 13 HP VST Shakti Diesel Engine Groove Cutting Machine
2. 10 HP Diesel Engine Groove Cutting Machine

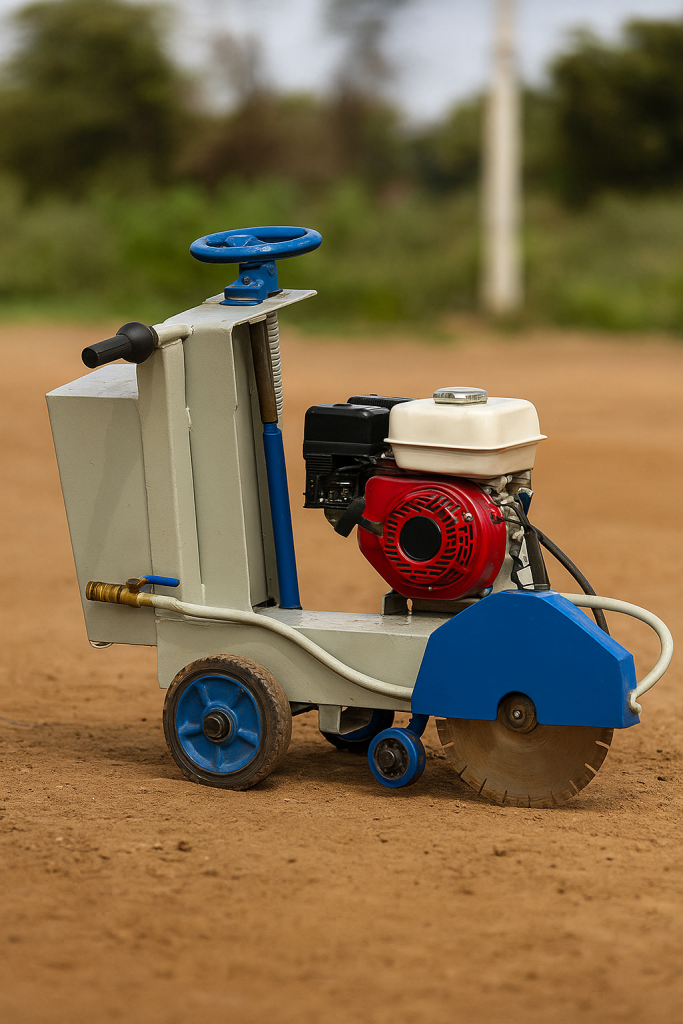

3. 5 HP Petrol Engine Groove Cutting Machine

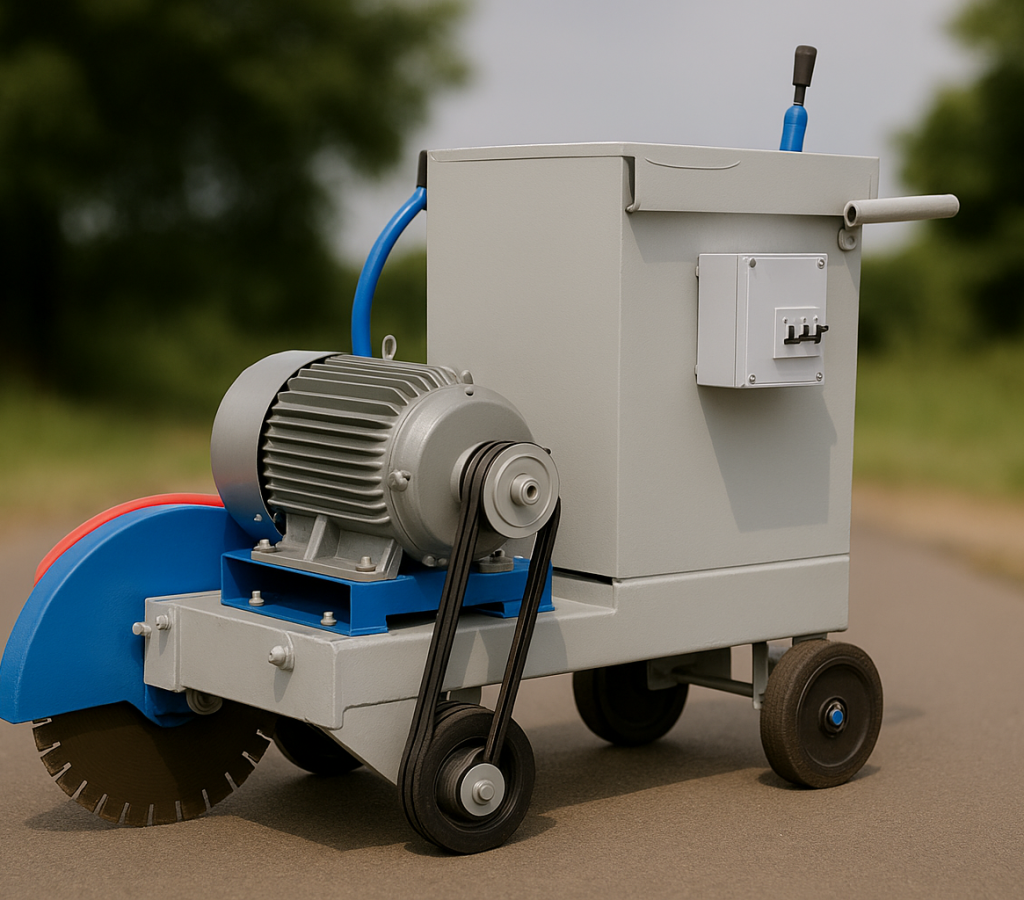

4. Electric Groove Cutting Machine
Features:
• Resistance to abrasion
• Easy to operate
• Easy maintenance
• Indicates rate and depth of cut
• Allows both wet and dry cutting
• Blades are easy to clean and heavy-duty
| Model No | TCGC 400 (7.5HP Electric Motor / 5HP Petrol Engine) |
|---|---|
| Cutting Depth | Up to 100 mm (Adjustable) |
| Blade Diameter | 400 mm |
| Power Source | Electric Motor / Petrol Engine |
| Drive Mechanism | Belt Pulley |
| Water Tank Capacity | 25 Liters (for blade cooling) |
| Frame | Heavy-duty MS structure |
| Wheel Type | Solid Rubber / Cast Iron Wheels |
| Cutting Width | 5 to 8 mm (varies with blade) |
| Accessories | Diamond Blade, Tool Kit, Water Supply Pipe |
| Weight | Approx. 130 – 180 KG |
Our Concrete Groove Cutter Machines are engineered for precision cutting of expansion joints and grooves in concrete pavements, roads, and industrial floors. Built with robust materials and powered by high-performance engines, these machines ensure accuracy, speed, and long-term reliability even under the most demanding site conditions.
Whether you’re constructing highways, airports, warehouses, or factory floors, our groove cutters provide a smooth and controlled cut with minimal vibration. Designed for operator comfort and safety, the machine’s depth adjustment and ergonomic controls allow for efficient handling and superior results.
